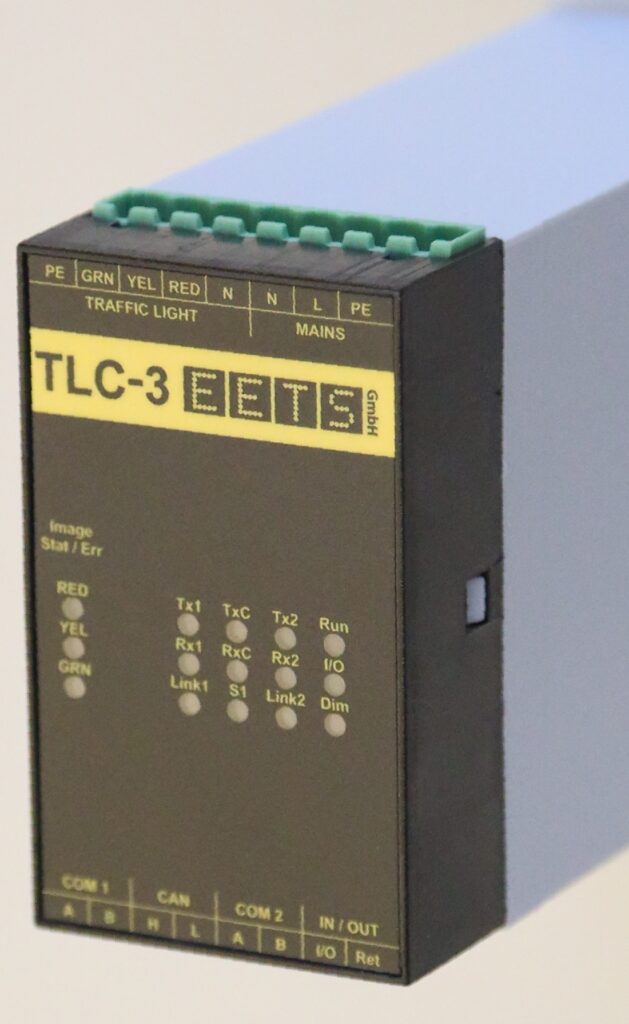

Traffic Light Controller TLC-LED, Version TLC-003

Traffic light controller for LED traffic lights –
Version TLC-003

Abstract
With the traffic light controller TLC-LED, LED traffic lights can be integrated uniformly in a modern installation structure which is based on serial interface and TLS system philosophy. A TLC module as logical signal unit can drive up to three LED traffic lights inserts which corresponds to a three-chamber traffic light. The traffic light controller disposes of active monitoring and defect detection of the driven loads via current measurement. It also contains additional functions like autonomous flash mode, flash synchronization, transition control, emergency control, and dimming.

Features

Control of up to three 230 VAC LED traffic light inserts (corresponds to one three-chamber traffic light)
Serial EIA-485 communications interface, galvanically isolated
Communications protocol according to the TLS 2012 standard
Permanent monitoring of the electrical load and self-monitoring function
Power-Off Monitoring, monitoring the connections traffic light inserts even when switched off
Supplementary operating functions like flash mode, barring, signal transitions
Extended range of operating temperature (-20 to +70°C)
Control of dimming functions for traffic light inserts (not available for all products)
2nd serial EIA-485 interface for optional expansion with a second control path
CAN bus connection for optional expansion with digital inputs and outputs (with I/O module IOC-002)

Functional description
The traffic light controller forms a standard connector between a modern, serial signal control and conventionally controlled LED traffic lights. The TLC-LED can control up to three LED traffic light inserts which corresponds to a three-chamber traffic light. If supported by the LED inserts, brightness can be reduced by a single-stage voltage reduction. The serial EIA-485 interfaces and the CAN-interface are galvanically isolated and protected against overvoltage. Data communication is based on the standard Protocol TLS-2012. During operation, the electrical load is permanently monitored and detected defects are reported.
The loads are monitored with a permanent current measurement when switched on and off and detected faults are reported back. This means that even when the signal is switched off, it is possible to detect whether an LED insert is present, whether there is a cable break or whether an LED insert is defective.

The TLC-LED can be extended via the CAN bus with digital I/O modules (IOC-002), with which e.g. an additional parallel interface for project-specific emergency operation or local operation can be realized. A second, full-value control path can optionally be realized via the second serial interface.

The test and communications software TLC Master allows testing and demonstrating of the functions of the TLC-LED, configuring the OSI2 address as well as performing a firmware upgrade if required.
